GRASSHOPPER第十八期 | 用Grasshopper制作小动画！

教程由DOZ数字之眼原创

案例也由DOZ数字之眼原创，并由我们解析，请知悉。

The course was created by doz digital eye

The case is also created by doz digital eye and analyzed by us. Please know.

教程开始

Tutorial begins

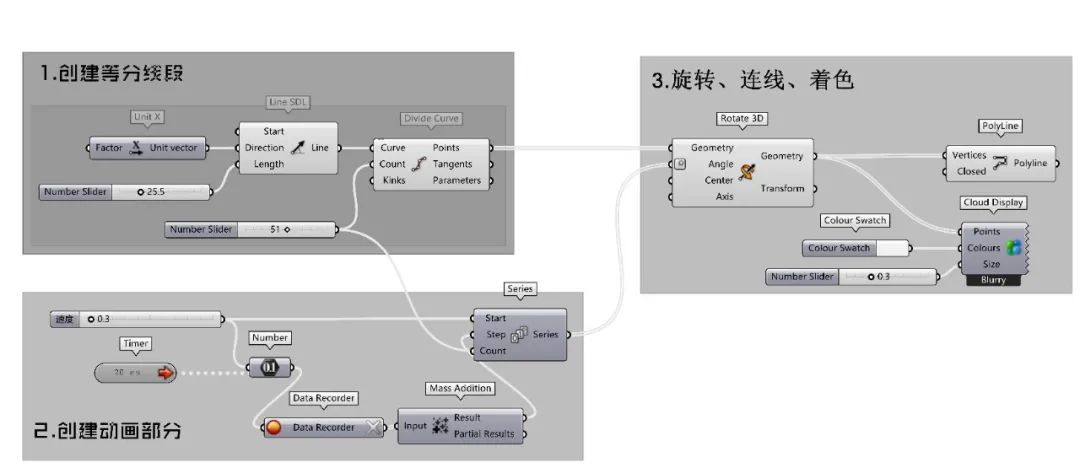

通过Line SDL配合Divide Curve创建等分线段。

然后我们来创建动画部分。Timer电池可以控制动画的快慢，右击它可以选择秒表速度。Data Recorder可以记录数据，Mass Addition是将每次记录的数据相加起来，这样数据就是持续上涨的啦！然后将数据给Series电池的Step，这样每一次等差的数据都是等差上涨的啦！

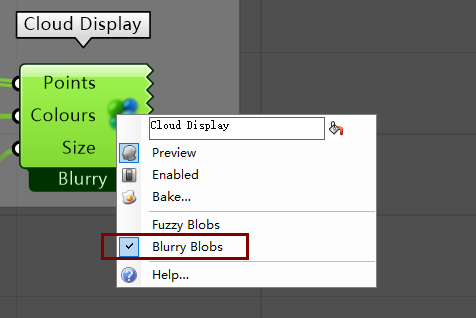

最后咱们通过Rotate 3D来形成旋转效果，对应端口相接即可，通然后过Polyline成线。最后咱们可以通过Cloud Display给点着色，右击它可以将模式改成Blurry Blobs。其他都是常规操作了。

高清电池图纸请下载后查看

Please check the HD battery drawing after downloading

后台回复

【GH小动画】

即可下载此工程文件
