GRASSHOPPER第十七期 | 麒麟表皮的参数化辅助建模

教程由DOZ数字之眼原创

案例也由DOZ数字之眼原创，并由我们解析，请知悉。

The course was created by doz digital eye

The case is also created by doz digital eye and analyzed by us. Please know.

教程开始

Tutorial begins

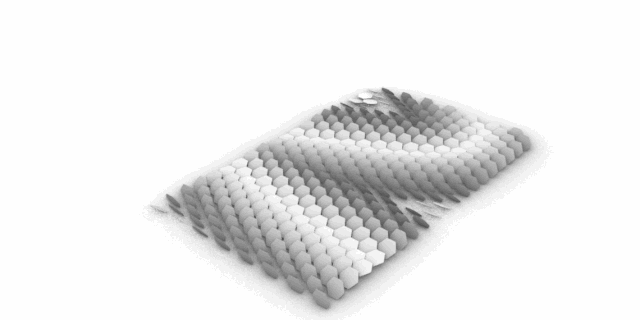

通过Hexagonal电池创建六边形，并通过Area电池获取它们的中心点。

在Rhino中画一条曲线，将其拾取进Curve电池中，然后通过Curve Close Point获取每个六边形的中心点到曲线上的最近点，同时Distance端可以计算出中心点到最近点的距离。

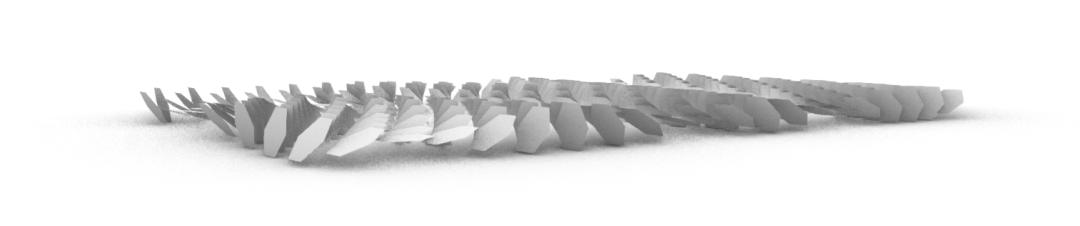

通过Rotate 3D电池对每个六边形进行旋转。Geometry端口连接六边形，Angle是弧度而不是角度，将六边形每个中心点到干扰曲线的距离乘以一个小数，方便调节，然后赋予给Angle。旋转的中心点Center是原来每个六边形的中心点。Axis是X轴。

然后封面，完事！

高清电池图纸请下载后查看

Please check the HD battery drawing after downloading
