GRASSHOPPER第八期 | Rotated Arc Structure Pavilion

文章由DOZ数字之眼原创

案例非DOZ数字之眼原创，但由我们临摹解析，请知悉。

教程开始

Tutorial begins

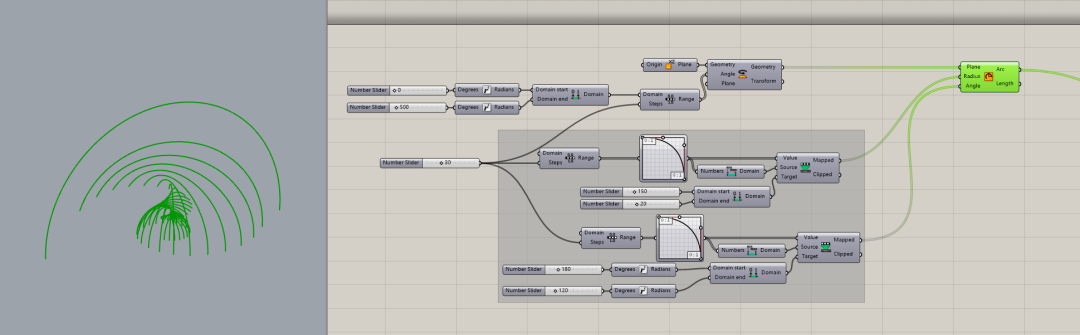

1.基础框架构建

在XZ平面上构建等分旋转的平面。（Range电池中Domain代表总的区间范围，Steps代表将这个区间范围等分多少份。其中Radians电池是弧度制与角度值转换的电池，在进行Rotate旋转时会经常用到）。

将半径值赋予到贝兹曲线区间范围，再由贝兹曲线区间范围映射到一个由大到小的区间。下面旋转值同理。（区间映射在Grasshopper中经常使用，可以专门查阅资料去攻克一下这个点）

2.形体构建

将刚才做出来的线进行Loft放样。然后通过Isotrim进行区间等分。（Isotrim与Divide Domain是一对好兄弟，区间等分的时候它们俩总是在一起）。

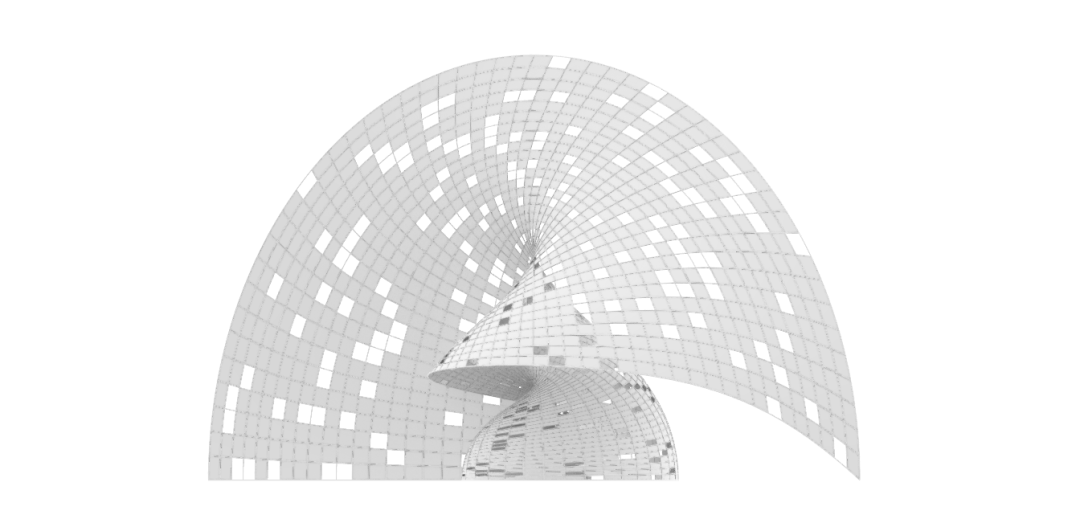

通过Random Reduce运算器，将等分的区间面进行随机删除。

通过Deconstruct Brep运算器，提取等分后的Surface的边线，然后将边线成管。

极地模式下效果

完整电池图纸

后台回复

【ROTATEARC】

即可下载此工程文件
