一家咖啡馆的过去、当下与未来/Metalhands铁手咖啡制造总局室内改造

“工厂区”日景实景图 ©金伟琦

“工厂区”中岛烘焙间及混凝土曲线吧台 ©金伟琦

金属管构筑的"时光隧道”实景图 ©金伟琦

“旧时光区”改造后实景图 ©Linkchance Architects

项目背景

项目位于北京市东城区东四南阳胡同6号，整栋建筑由共享际翻新改造，该建筑是上个世纪六七十年代中演集团北京芭蕾舞剧院排练场地，内部包含一个剧场，本项目是排练场内部一食堂面积约300平米。场地空间结构复杂，主要有三个不同的空间组成，有层高较高的框架结构，也有北京传统四合院木结构瓦房，三个空间的标高不一，空间高低变化形成有趣的“探秘”空间。

Project Back ground

Located at 6, Dongsinanyang Hutong,Dongcheng District, Beijing, the project is renovated by 5L Meet. Originally rehearsal spot for Beijing Dance Academy of China Performance Group back in1960s and 1970s, which included a theater, the project site used to be a 300 ㎡cafeteria. It has a complicated structure, with both higher frame structure and wood structure tile-roofed house of Chinese traditional court yard. The project, composed by three spaces with different elevations, leaves much roomfor an intriguing exploration.

改造后“工厂区”实景图 ©金伟琦

关于Metal Hands coffee

Metal Hands coffee致力于本土精品咖啡探索，已经在北京、上海共有六家店，店面虽小但以高品质咖啡和精致有趣的室内环境而被业界所熟知。本项目是Metal Hands coffee的第六家店，作为总店（工厂店）在北京运营，烘焙间专门配置一台烘焙机将烘焙好的咖啡豆分发给其他店面，运营工厂店是Metal Hands coffee 承上启下十分重要的节点，是对前几家店的一个总结，也是对未来发展的一次全新探索。

About Metal Hands coffee

Committed to exploring domestic coffee,Metal Hands coffee has already opened eight stores in Beijing and Shanghai, all of which are famous for their high-quality coffee and exquisite interior inspite of their small sizes. This project is Metal Hands’ sixth shop in Beijing as the brand’s headquarter (factory shop), with a dedicated roaster to distribute roasted coffee beans to all other stores. The roastery serves as a transitional link for Metal Hands coffee, one that not only summarizes experience learnedfrom previous shops, but also marks the new beginning of future development.

总平面图

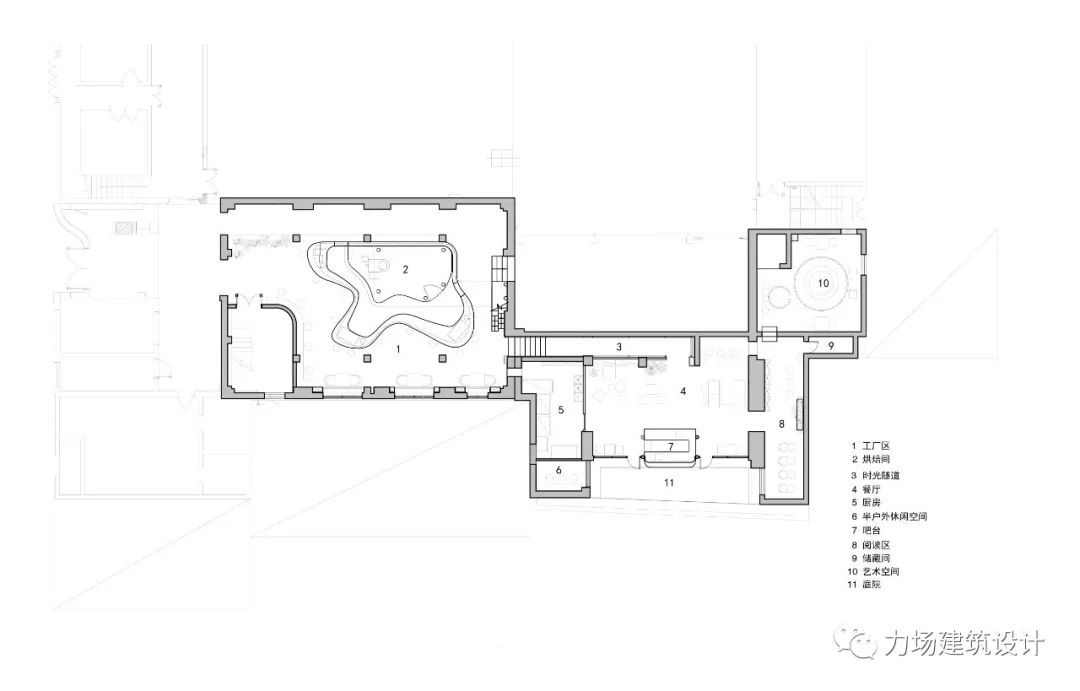

改造后平面图

场力

一，空间张力：整体空间是由几个大小不一，建造年代不同的空间串连形成，各空间地面高低起伏变化有趣，有很强的空间塑造潜力。第一个空间是大厅区域，大厅是框架结构，层高4.1米，南侧有三个大的采光窗户，窗台较高采光均好。

Forces

1.Spatial force: the overall space is connected by spaces of various sizes that were built in different yeras. The changing floor heights across spaces promise great potential for creativity. The first spaceis the lobby area, a frame structure with a ceiling height of 4.1 meters. The three huge skylight windows on the south, with their high windowsill, ensure ample lighting.

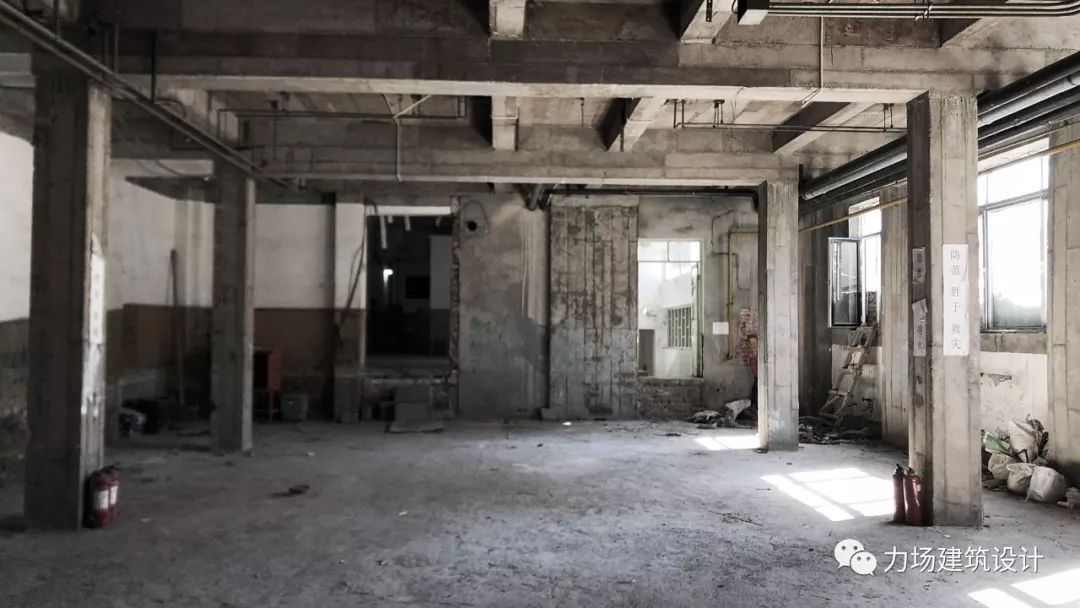

大厅改造前现场

大厅东侧有个狭长的通道进入到第二个下沉空间，这个空间是传统四合院的主屋，房屋是木结构，斜屋顶瓦房，之前被当做排练场的食堂，该屋正方前有一微小庭院空间，庭院小但采光充足，是整个空间仅有的户外空间。穿过“厨房”区域到“后厨”区，后厨空间层高4.35米，空间可塑性强。

A narrow corridor on the east leads to the second space, the sunken space. As the main house of the Chinese traditional court yard,this space is a tile-roofed house with a wood structure, which was originally used as the cafeteria of the rehearsal spot. A small courtyard,the only outdoor area of the whole space, sits in front of the house and ushersin sufficient lighting. Through the kitchen area comes the back-kitchen area,whose ceiling height of 4.35 meters allows much room for creativity.

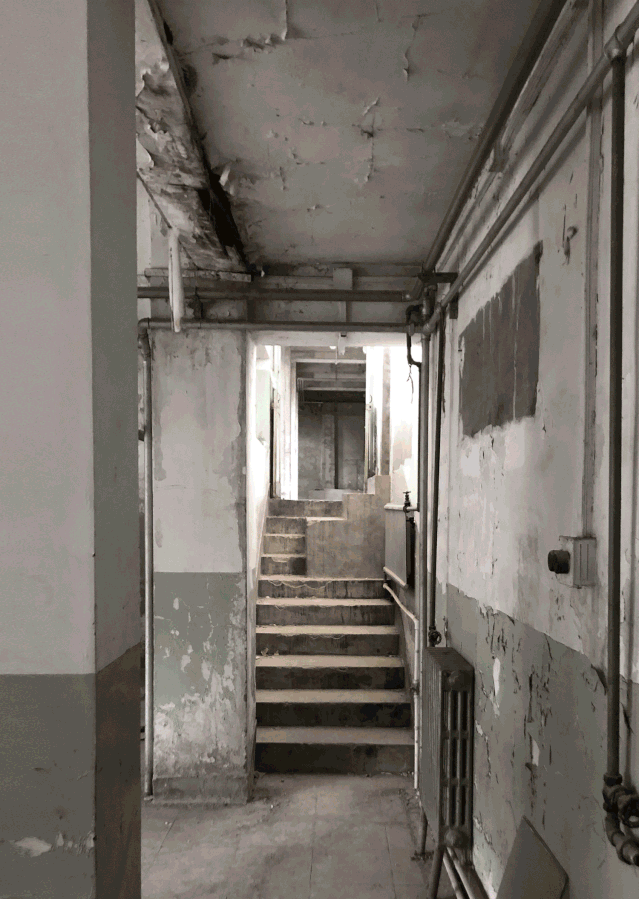

“旧时光区”及通道改造前现场

二，物质的力、时间的力：大厅旧混凝土模板浇筑的印迹清晰可见，“厨房”区建筑是传统的梁木结构，年久失修亟待被清理，被发现，以重新散发古老魅力。被潮气及蚊虫侵蚀的木头柱、混凝土模板浇筑痕迹、木屋顶、旧瓷砖水泥贴面，清绿色旧窗户、旧水磨石地砖，我们认为所有场地的这些物质之间有很强的联系，彼此之间存在着特殊的力，他们在不同的年代建造，修缮、连接、所用，经过时间的洗练现在呈现出不同的状态及颜色，改造后与新空间微妙结合，这些一切由时间做为连接而发生的变化和对话，新设计就是要强化这种连接，强化物质之间因新旧对比而产生的时间感，强调因空间变化而形成人对时间的感知。

2.The forces of material and time: the marks of old concrete formwork pouring inlobby is clear. Kitchen area, a traditional wood beam structure, has not been properly maintained for years. It desperately needs to be cleaned so that itstraditional charm can be rediscovered. The wood columns that have endured yearsof humidity and invasion of ants, the marks of concrete formwork pouring, thewood roof, the old ceramic tile on the concrete, the old turquoise window, theold terrazzo floor tile, all these elements, as far as we are concerned, areall interconnected, with a special kind of force flowing among each other. They were built, restored, connected and used in different times, all of which leadto how they look and what they are today. After renovation, they merge with the new environment, talking and interacting with each other through the bond stemmed from the time span. This new design seeks to intensify the connection,emphasizing on the passing of time by drawing comparison between differentitems as well as people’s perception of time generated from the switching among spaces.

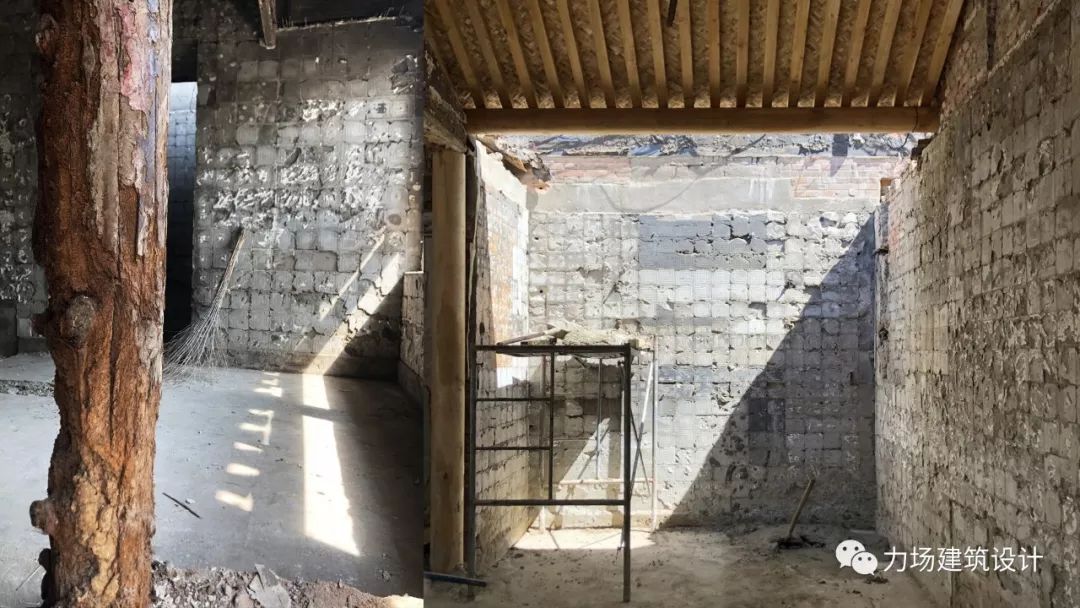

小院改造前现场/时间的痕迹

“旧时光区”改造中/时间的痕迹

挑战

如何将不同空间有机串联并形成稳定统一的空间而不显得凌乱，如何打造新型的、有趣的咖啡生活体验社区；技术上如何实现异形曲面混凝土吧台；如何有序引导共享际与本项目的交叉施工；如何实现Metal hands coffee工厂店“承上启下”的定位，如何提高Metal handscoffee工厂店的辨识度。

Challenge

How to organically integrate different spaces into a stable and unified one that does not appear to be messy. How tocreate a brand-new and interesting community for coffee lovers; technically,how to manufacture irregular-shaped and curved concrete bar counter; how toorderly carry out cross construction of 5L Meet and our project; how to deliver Metal Hands’s intention for this factory shop to be a transitional link and how to make Metal Hands’ factory shop a more recognizable destination.

力场

大厅改造后为“工厂区”，工厂区是由异形曲面混凝土吧台围绕“透明”烘焙间形成，客人与咖啡师的操作是“看”与“被看”的关系，客人散坐在吧台四周可观看“工厂”运作和咖啡师的日常操作，吧台设计高度低于通常吧台仅800mm，方便顾客与咖啡师近距离交流；

Vibes

The lobby is transformed into the factory area,with a see-through roastery room surrounded by irregular-shaped and curved concrete bar counter. Customers sitting around the bar counter are able to observe the baristas as well as the factory as they operate. The counter is designed to be 800mm lower than regular bars, allowing closer exchanges between customers and baristas;

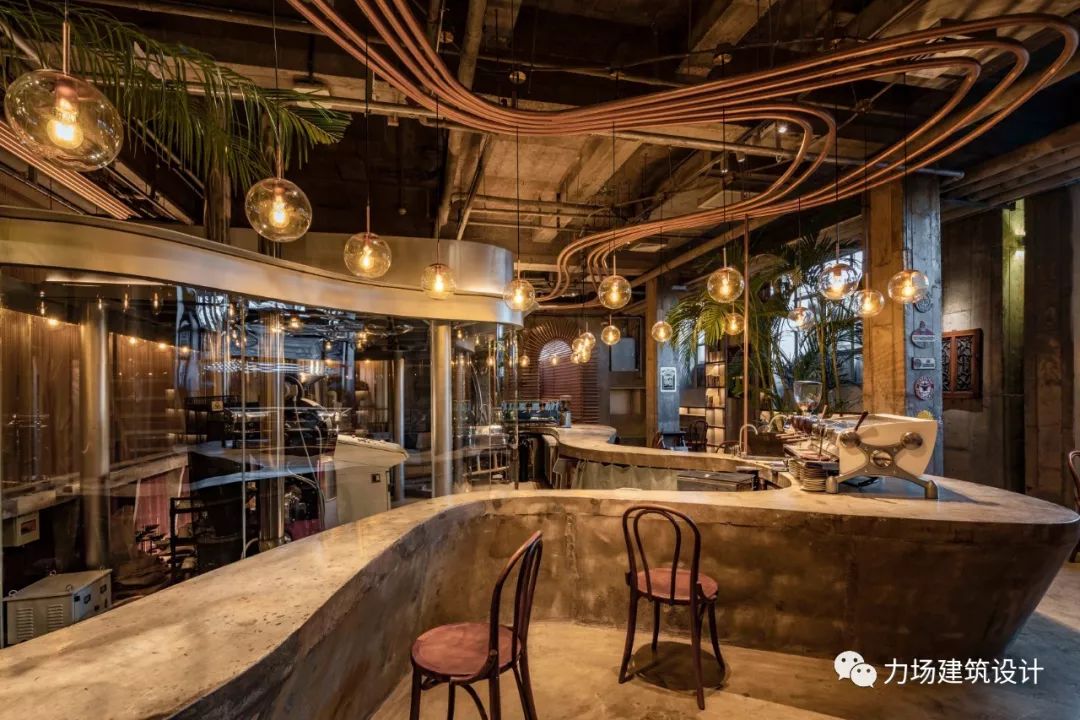

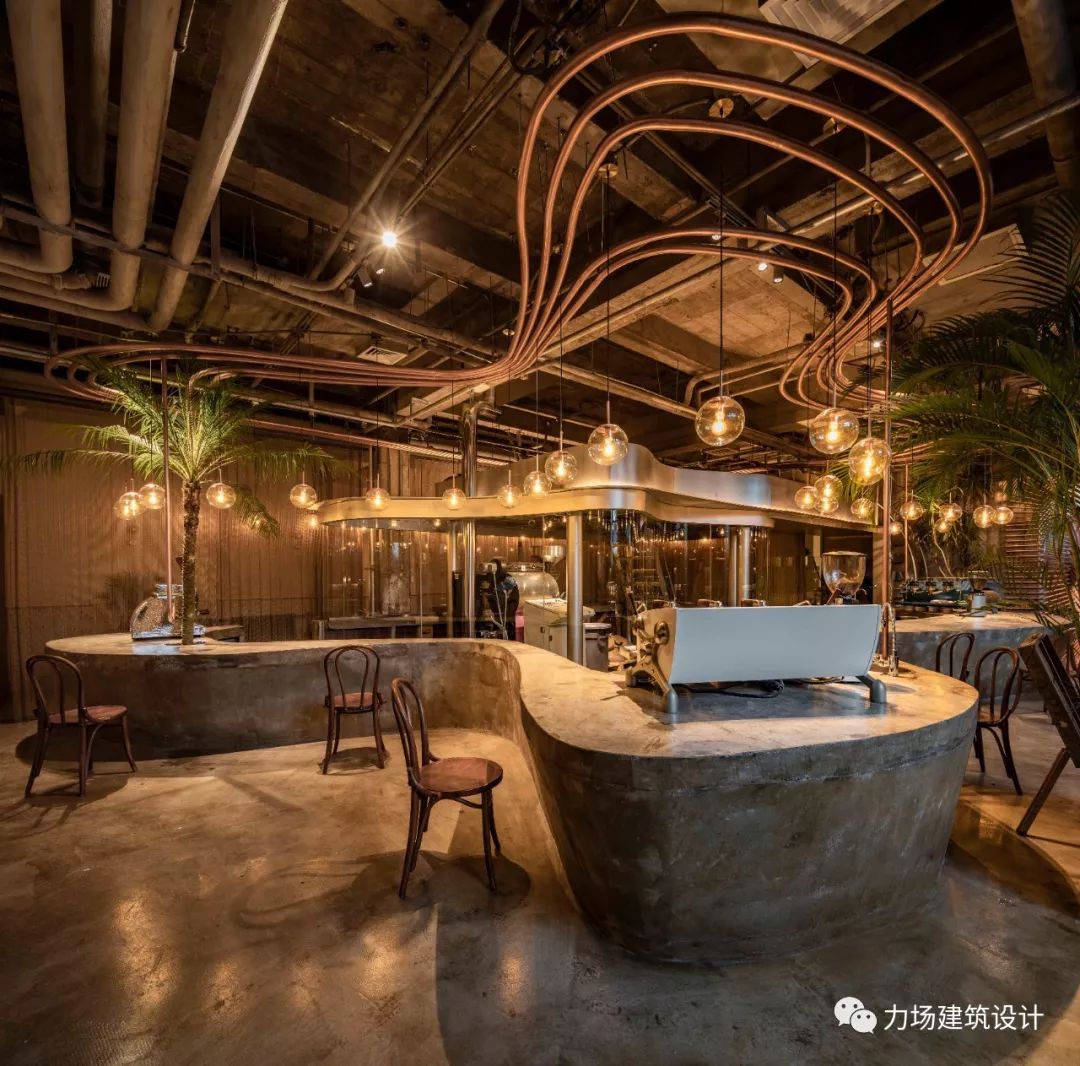

“工厂区”日景实景图 ©金伟琦

大厅保留和修复原混凝土墙面、顶面及柱子；顶部以管为元素设计与吧台同轮廓的水平向金属管装置，其中一根管内接通水路，再由三根竖向管将水供应给吧台；金属银灰色外壳，透明玻璃的烘焙间内含夹层，夹层上方可作为储藏也可以作咖啡培训空间；烘焙间内有一台烘焙机运转，整个烘焙间从声音、颜色，材料上共同营造咖啡店“当下”的工厂状态。

The lobby retains and repairs the original concrete wall, ceiling and columns; on the ceiling, the element of pipe isutilized to design horizontal metal pipes that share the same contour as the bar counter. One of the pipes connects the water supply, with another three vertical pipes channeling the water to bar counter; the roastery room, with itssilver-grey metal shell and see-through glass, has a mezzanine, which can serveas a storage area and training ground for coffee knowledge; a roaster runs inthe roastery room, which, as a whole, creates the vibe of a factory with its sound, color and material.

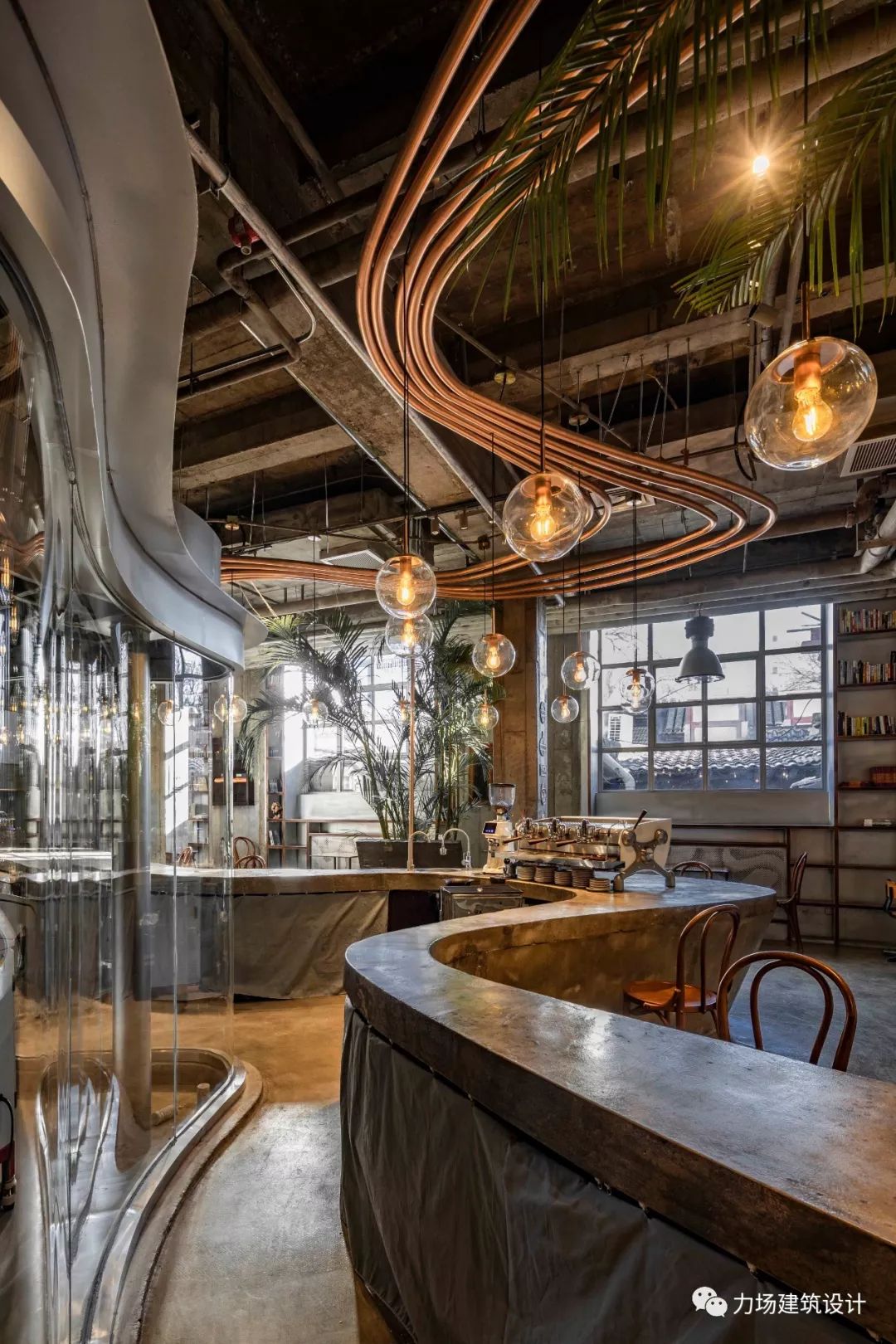

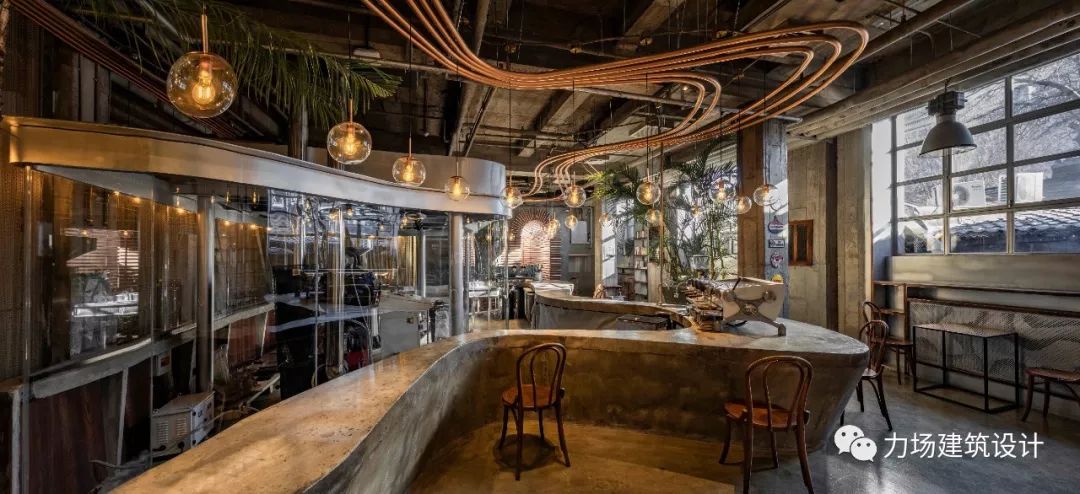

“工厂区”日景实景图 ©金伟琦

“工厂区”南侧窗户及顶部金属管 ©金伟琦

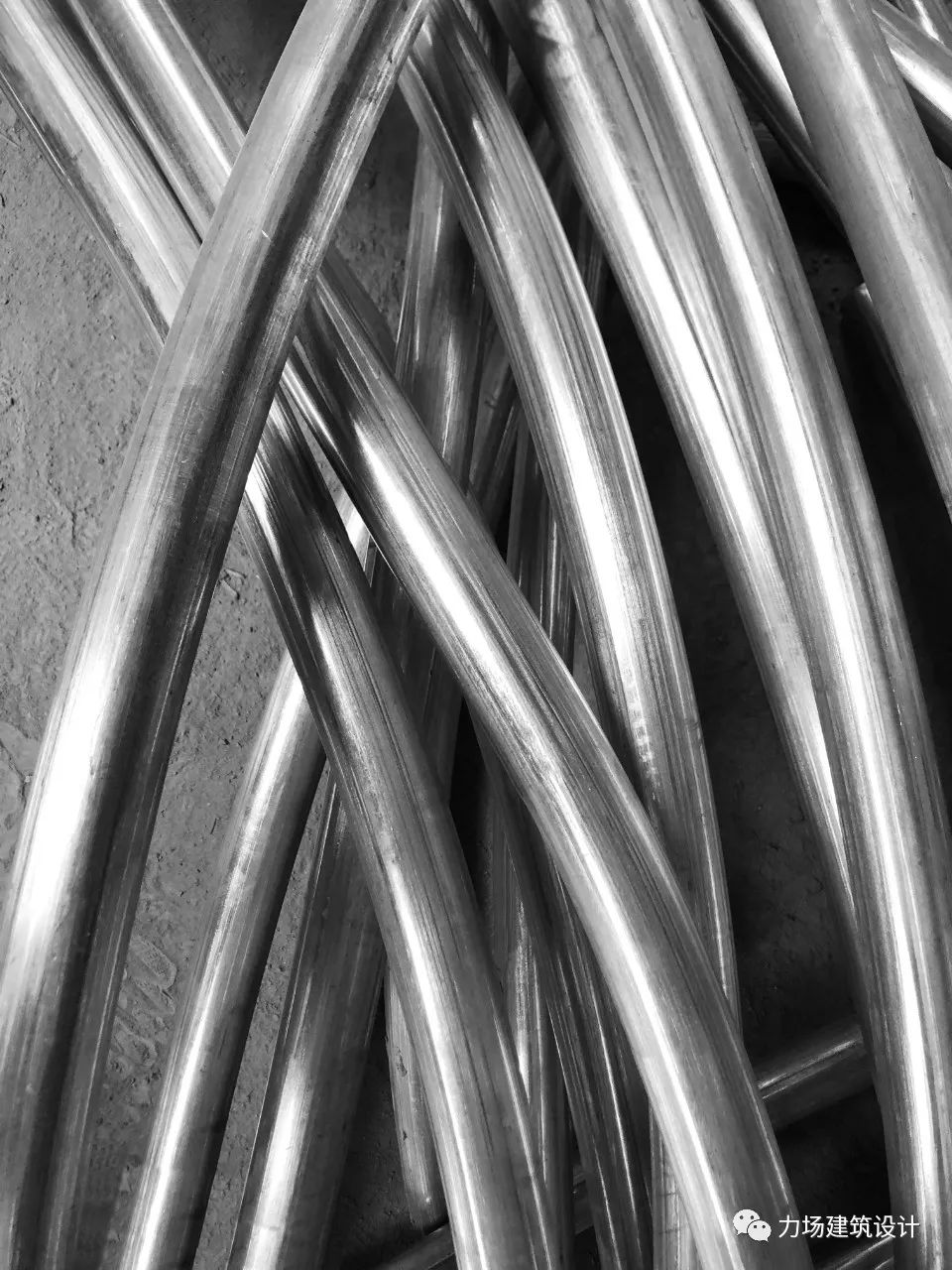

“工厂区”顶部金属管材质 ©Linkchance Architects

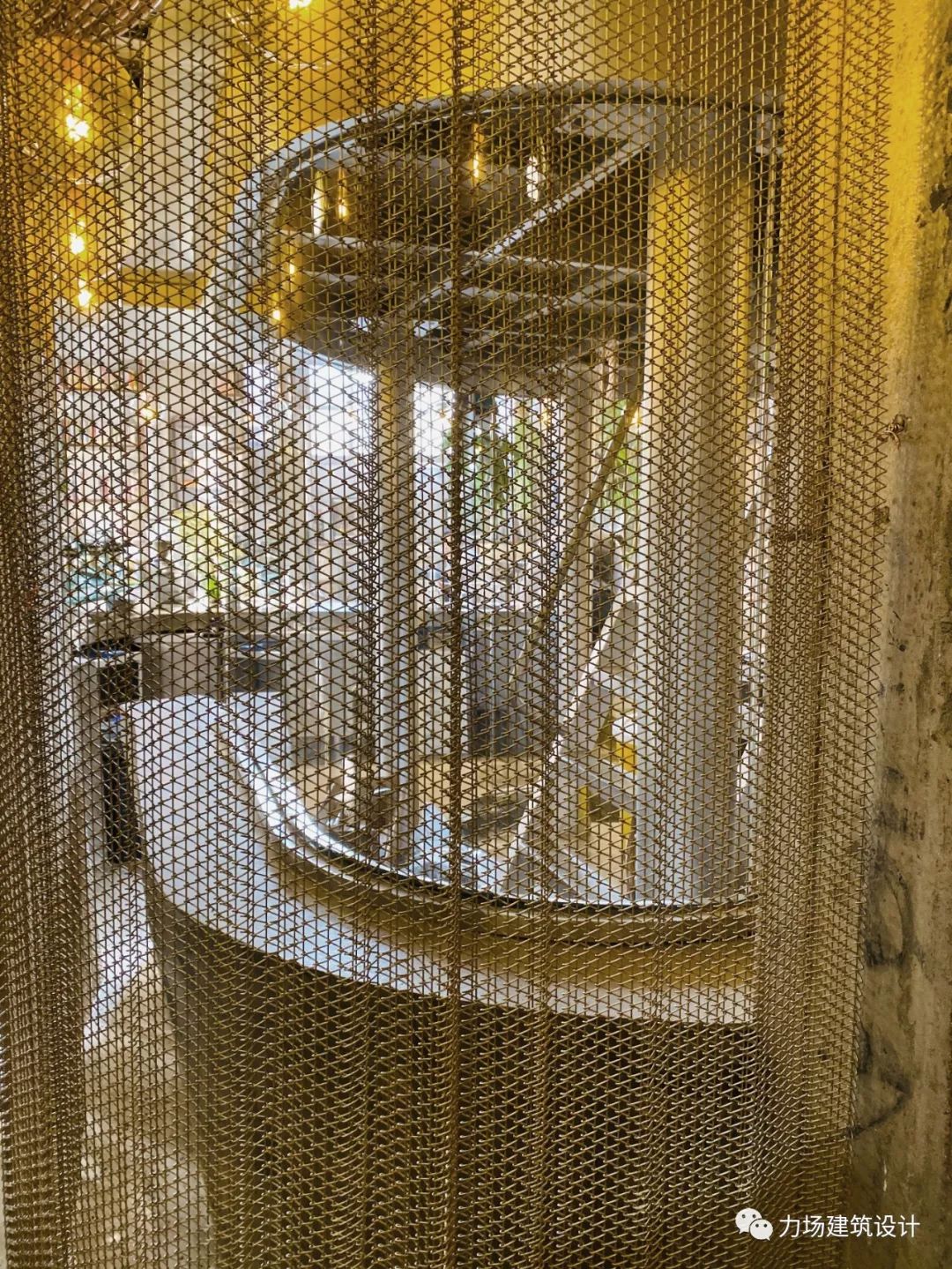

“工厂区”走廊边界金属网材质 ©Linkchance Architects

“工厂区”与“旧时光区”由“时光隧道“连通，当人进入11米长具有未来感的金属管通道时会对下一空间充满好奇与期待，到达旧时光区后由于空间切换给人强烈的”穿越“之感；

The factory area is connected to old times area with a tim e tunnel. As people enter this 11-meter long futuristic metal pipe,their curiosity and anticipation of what comes next spike.,and when they arrive at the old times area, the change in spaces gives out the experience of time traveling;

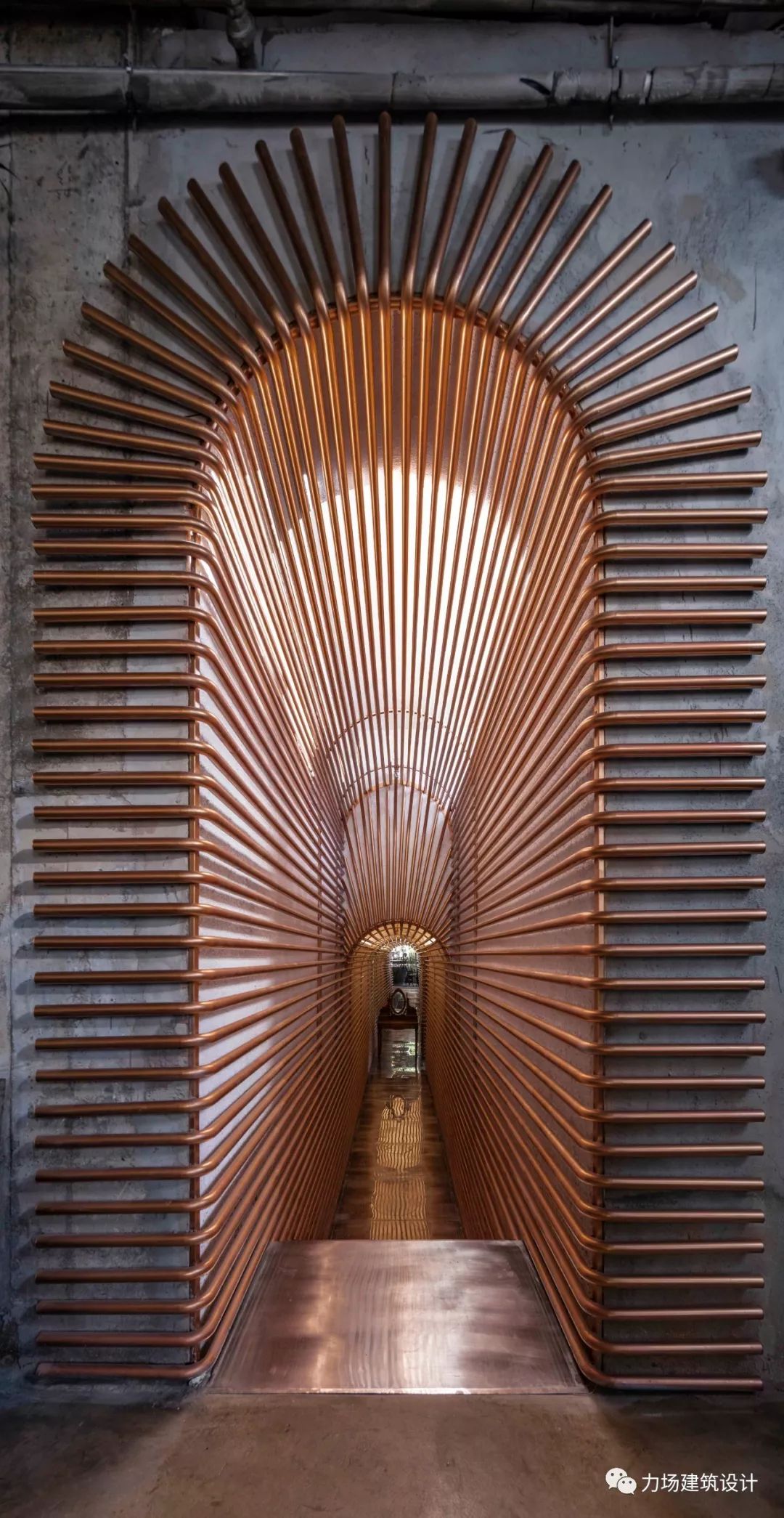

金属管构筑的"时光隧道”实景图 ©金伟琦

通道改造前后对比 ©Linkchance Architects

金属管构筑的"时光隧道“实景图 ©金伟琦

通道改造前后对比 ©Linkchance Architects

“厨房”区域改造后为”旧时光区“，我们对老房子屋顶及窗户更进行更换和翻修，保留原有墙面痕迹及老旧水磨石地面以营造“过去”的时光；我们在主屋窗户中间与户外小院之间又设计了一个副吧台，主要服务于旧时光区和艺术空间，副吧台呈回字形，三分之一在户外，三分之二在室内，吧台两侧开门，夏季人多的时候吧台可做为“中岛”连接室内外，顾客可围绕吧台就坐，咖啡师也可以全角度提供服务。旧时光区家具由咖啡店主理人丁老师从海外淘回来的经典家具，很有年代感，强化了“过去时光”。

The old times area is renovated from kitchen area, with roof and windows of the old house being replaced and refurbished.The original wall and terrazzo floor are kept in order to create the vibe ofold times; a smaller bar counter is set up between main house window outdoor ourtyard to serve the old times area and art space. This counter has an enclosed shape, with 1/3 of it located outside and the rest inside. The counter opens on two sides and serves as a middle island to link the outdoor and interior during busy hours in summer. Customers are welcome to sit around the counter,where baristas can serve themfrom any angle. Furniture at the old times area is purchased by Mr. Ding, the shopmanager, from abroad. The classic furniture brings back vibe of the past,strengthening the concept of old times.

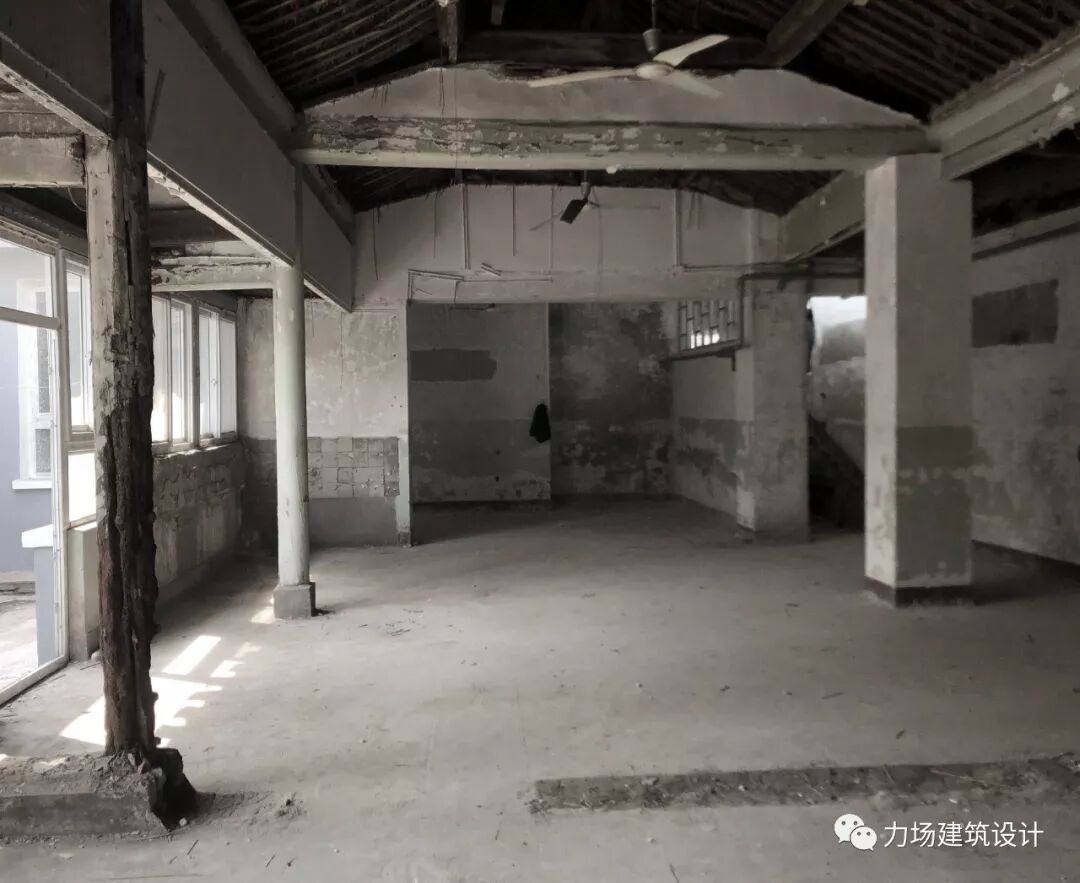

“旧时光区”原始现场

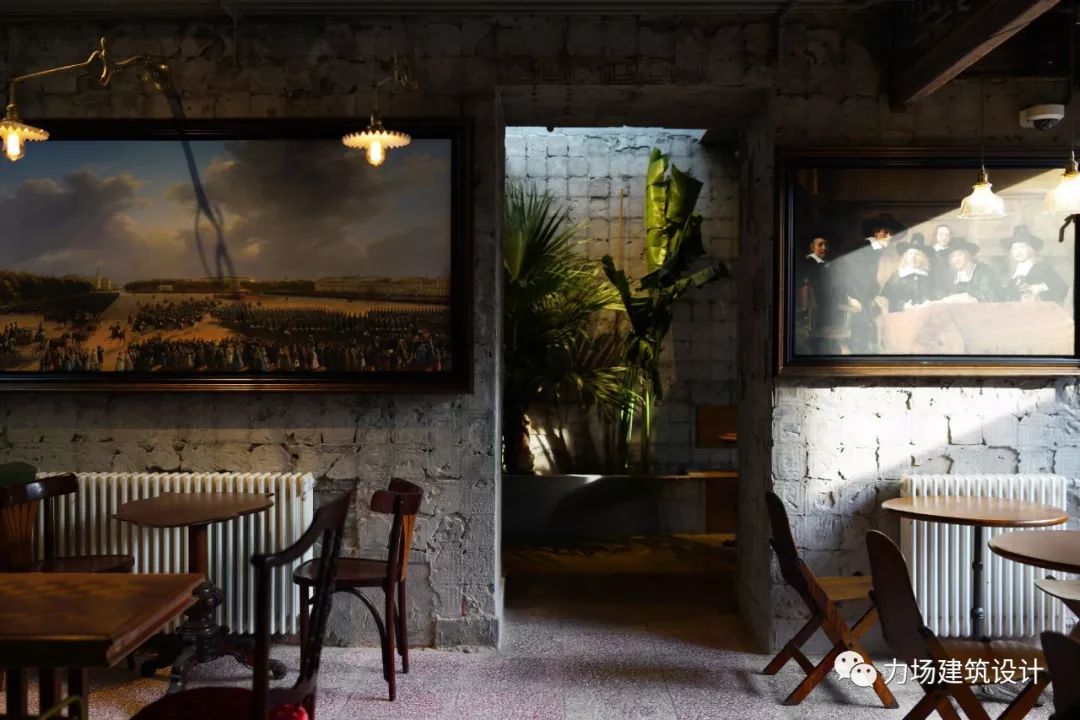

“旧时光区”改造后实景图 ©金伟琦

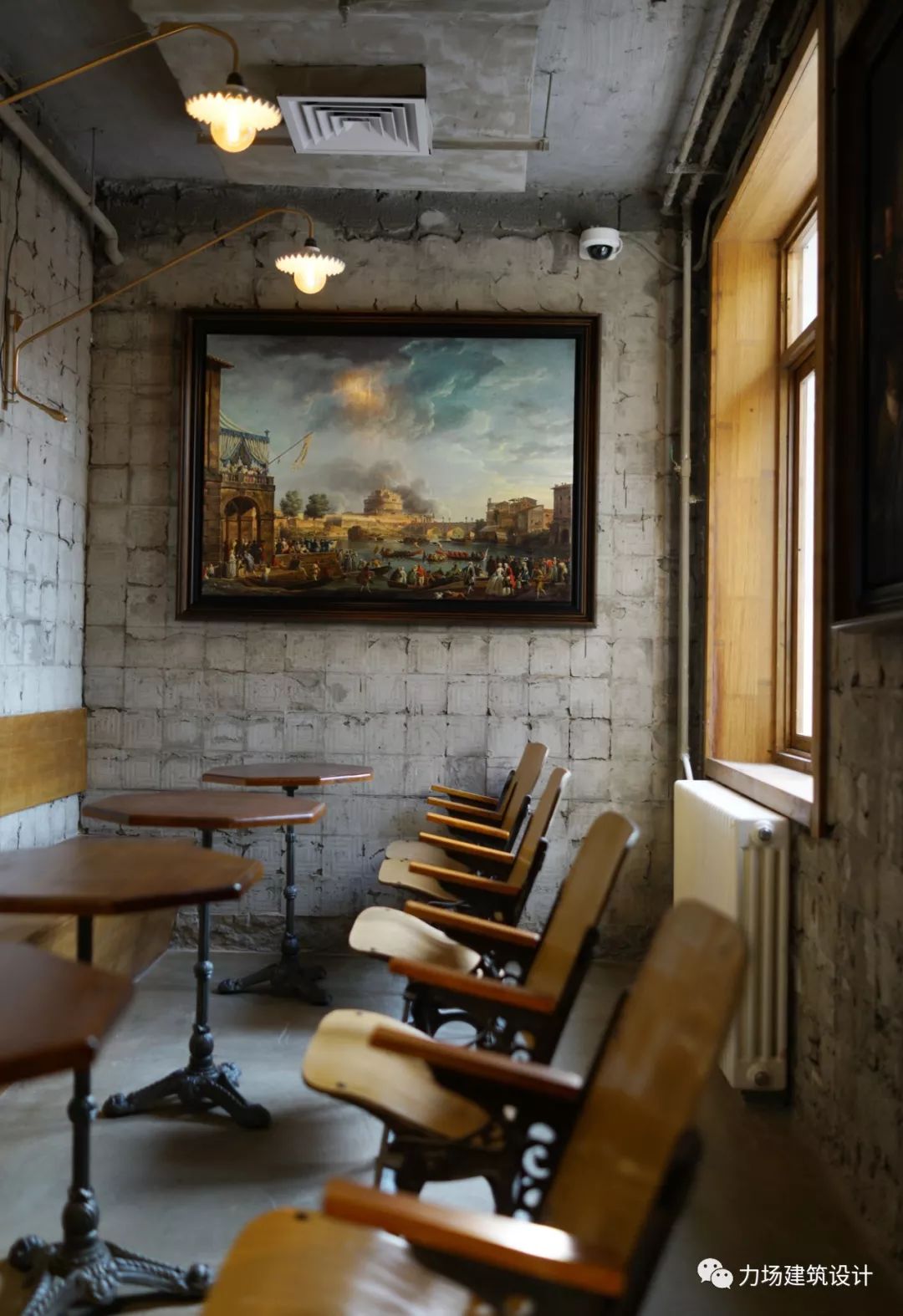

“旧时光区”一角实景图 ©Linkchance Architects

“旧时光区”与阅读区之间的洞口 ©金伟琦

洞口局部 ©Linkchance Architects

阅读区改造后实景图 ©Linkchance Architects

“后厨”区域改造为集艺术沙龙、展示为一体的艺术空间，顶部圆筒形装置内可不定期邀请艺术家创作，装置、或举办小体量展览等多种形式，这种开放的理念也是Metal Hands咖啡自身对“未来“经营模式的一种探索。

The back-kitchen area is rebuilt into anart space that combines art salon and exhibition. The cylindrical space on top functionsas room for artist creation and small-scale exhibitions. This idea of openness also represents Metal Hands coffee’s exploration of future business model.

艺术展示空间入口 ©金伟琦

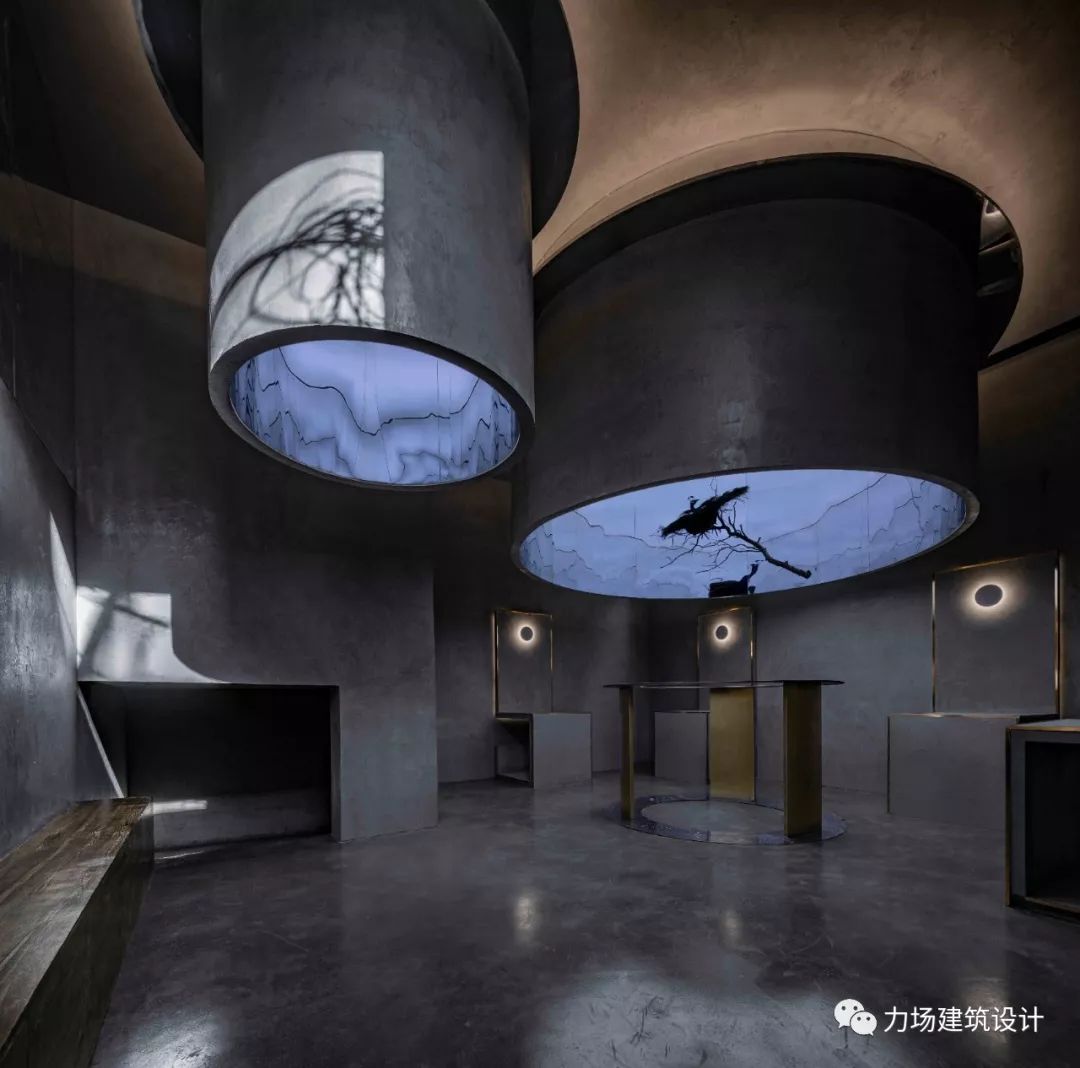

艺术展示空间 ©金伟琦

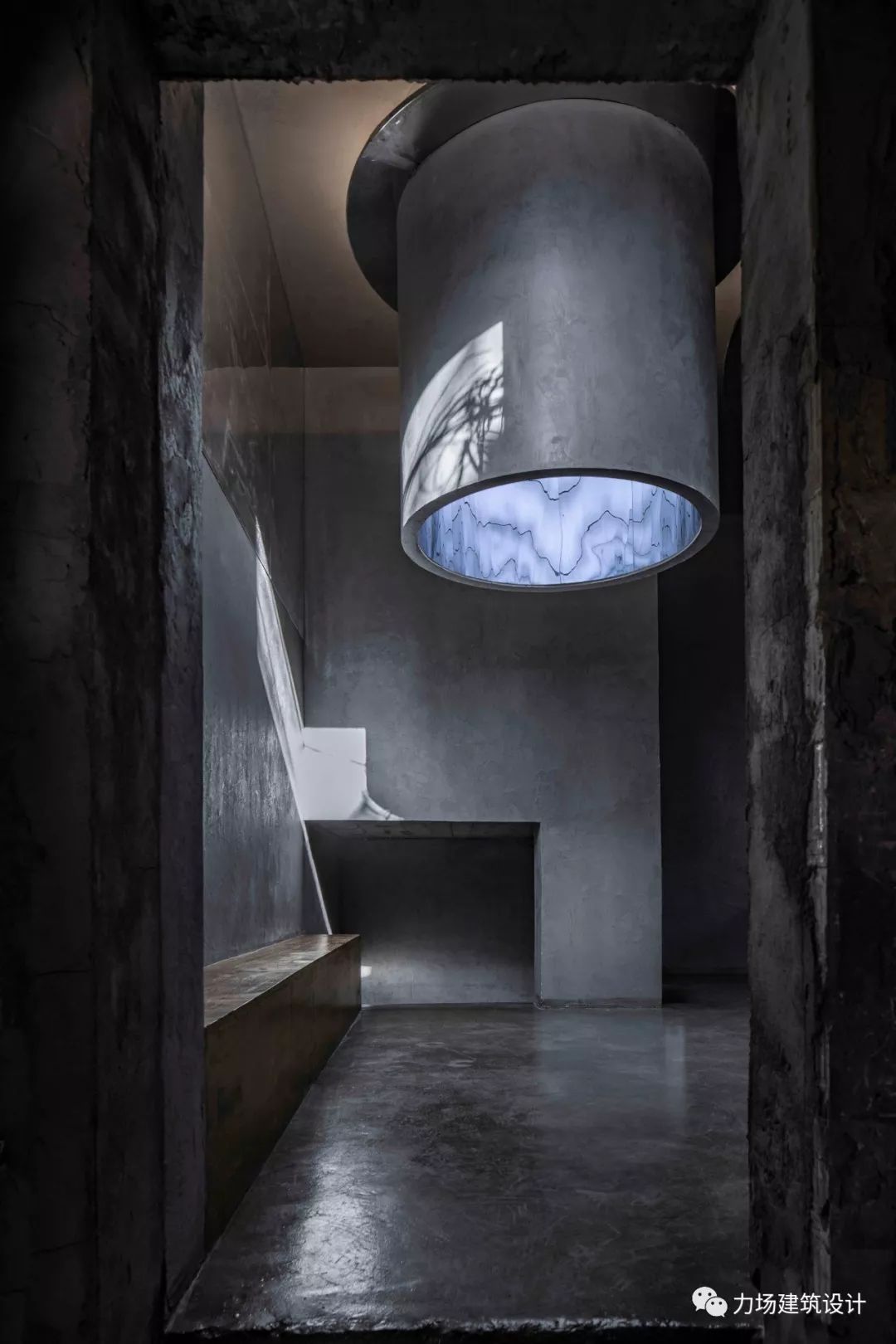

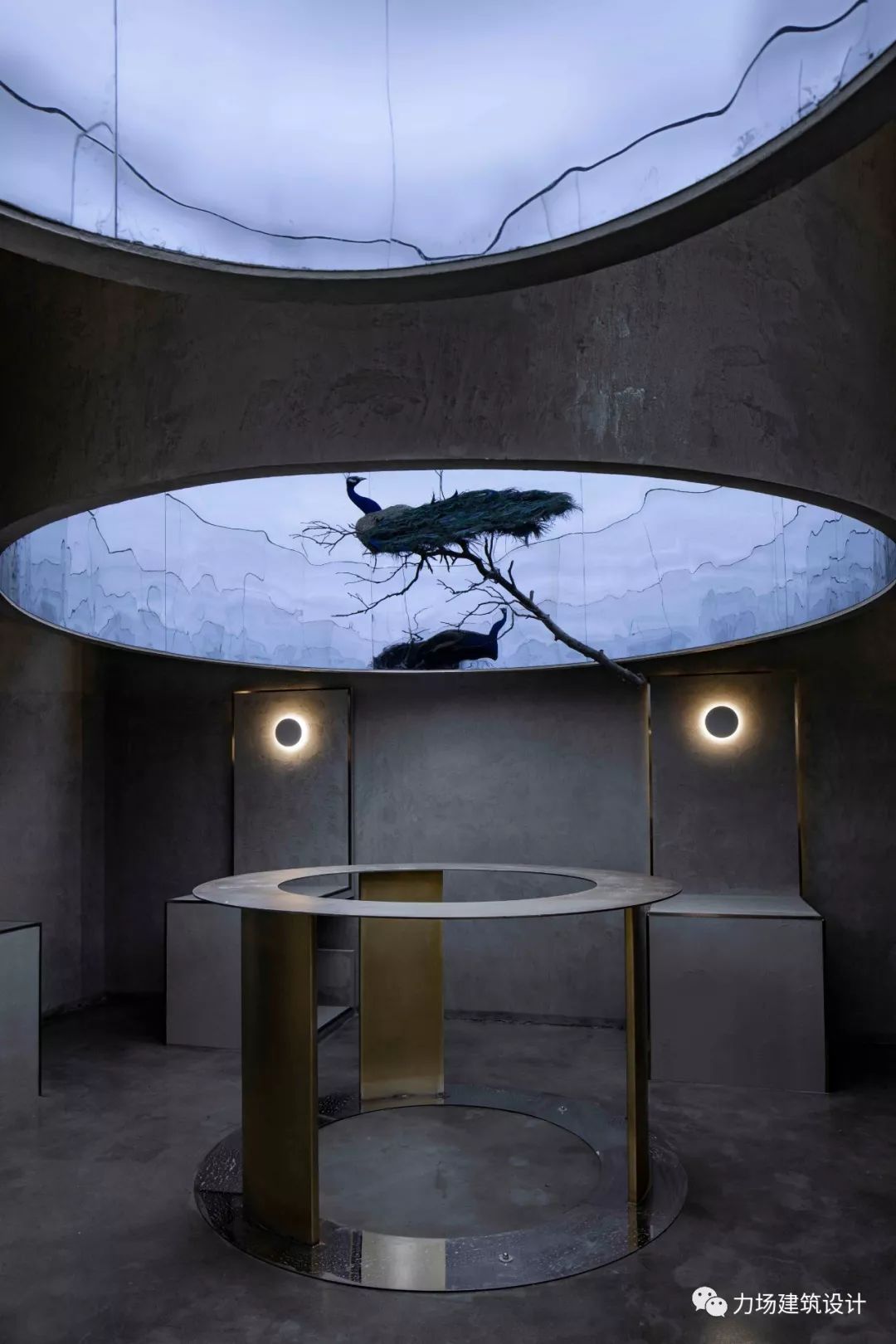

艺术展示空间圆筒装置 ©金伟琦

艺术展示空间 ©金伟琦

艺术展示空间模型研究 ©Linkchance Architects

艺术展示空间圆筒装置模型研究 ©Linkchance Architects

空间轴侧分析图 ©Linkchance Architects

结语

顾客在不同的空间感受与切换、体验不同空间营造的“场”，人们在这个“场”里交流、碰撞产生更多的能量，这个“场”与共享际、共享剧场融合，共同在老旧胡同区域内形成力场，这个力场一定程度激活了胡同里的日常生活，也是我们对胡同文化生活方式的一次探索实践。

Conclusion

By immersing in and switching from different spaces, customers are able to experience the vibes created by all these spaces, in which they use communications and exchanges to produce more energy. Interacting with 5L Meet and shared theater, all these vibes form aunique force field in old Hutong area, which, to some extent, stimulates the daily life and enriches cultural experience in Hutong.

项目信息：

项目名称：Metalhands coffee 铁手咖啡制造总局

项目地址：北京，东城区

项目业主：Metal hands coffee 铁手咖啡

建造时间：2019年3月-2020年1月

室内面积：300平方米

设计单位：力场（北京）建筑设计 Linkchance Architects

主创设计：安兆学

设计团队：候雪、于文靖、邵琳、张鹤

照明咨询：北京远瞻照明设计有限公司

建造材料：混凝土、穿孔铝板、不锈钢板、竹钢、条纹玻璃、镜面板、水泥艺术漆等

项目摄影：金伟琦、 Linkchance Architects
